| Model Code | Serial | Year Made | HP & RPM | Cyl |
| 133-0-5010 | 1950 | 3.6 @ 4000 | 1 | |
| Ignition Type | Alternator | Bore & Stroke | Disp | Weight |
| Magneto | No | 2 1/8 x 1 3/4 | 6.21 cu in | 43 lbs |
| Orig Color | Model Markings | Starter Type | Prop Dia. & Pitch | Prop to Shaft |
| Light Green w/Red Decal | Firestone | Recoil Start | 2 Blade 7 1/2 x 6 | Shear Pin |
| Gas Tank | Cooling | Point Gap | Orig Spark Plug | Plug Gap |
| 8 pints | WC | .020 | Champion H10 N4 | .032 |
| Orig Oil | Original Oil Mix | Shaft Length | Full-Shift | Lower Unit Lube |
| SAE 30 | 1/2 Pt per Gal N1 | Standard 15" | Non-Shift | APG 105 |

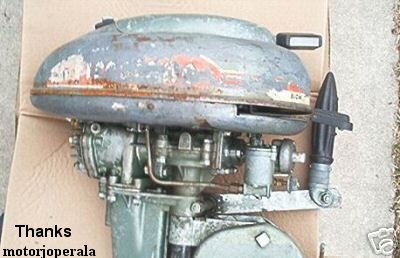

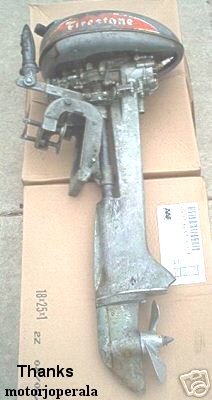

| Pict 1 | Pict 2 | Pict 3 | Description | Original Selling Price |
| Yes | Yes | Yes | 89.95 |
| Special Notes |
| Key Codes |
|---|
| AC - Complete Motor is Air Cooled |
| A - Aluminum |
| B - Bronze |
| ELW - Exhaust Leg is Water Cooled |
| F - Forward Gear |
| H - Hood (Motor Cover) |
| L - Motor Leg |
| LS - Long Shaft Motor |
| N - Neutral Gear |
| PHA - Power Head is Air Cooled |
| R - Reverse Gear |
| SC - Slip Clutch |
| SS - Stainless Steel |
| WC - Complete Motor is Water Cooled |
| Notes: |
|---|
| N1 - See Oil Mix Page for Alternative Mix with Current Oils |
| N2 - See Gear Case Oil Page for Alternative Mix with Current Oils |
| N3 - See Power Trim & Tilt Oil Page for Alternative Mix with Current Oils |
| N4 - See Spark Plug Page for Current Replacement Interchange |
| N5 - If Engine has a Small Water Pick-up Tube (Engine has no Impeller) |
